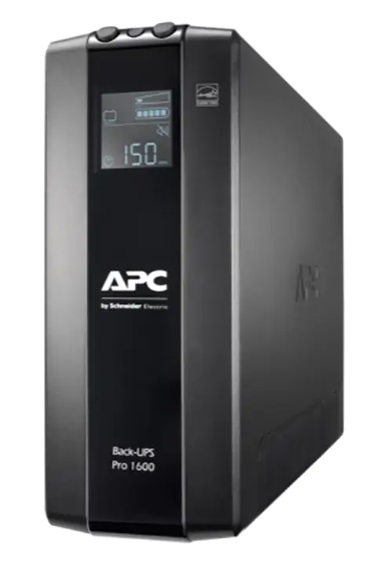

APC Back UPS Pro 1600VA BR1600MI
Description
Technical Specifications Output Max Configurable Power (Watts) 960 Watts / 1.6kVA Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains Topology Line interactive Output Connections (6) IEC 60320 C13 (Battery Backup) (2) IEC 60320 C13 (Surge Protection) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC 60320 C14 Input Input frequency 50/60 Hz +/- 3 Hz Auto-sensing Input voltage range for main operations 176 - 294V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 16 hours Nominal Battery Voltage 24 V Replacement Battery APCRBC166 Expected Battery Life (years) 3 - 5 RBC Quantity 1 Battery Charge Power (Watts) 11 Watts Communications & Management Interface Port(s) USB Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection And Filtering Surge energy rating 509Joules Data Line Protection RJ45 10/100/1000 Base-T Ethernet protection Filtering Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous Physical Maximum Height 250MM Maximum Width 100MM Maximum Depth 382MM Net Weight 10.9KG Shipping weight 11.65KG Shipping Height 330MM Shipping Width 485MM Shipping Depth 225MM Colour Black SCC Codes 10731304346910 Environmental Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 95 (Non-condensing) % Operating Elevation 0 - 3048metres Storage Temperature -15 - 45 °C Storage Relative Humidity 0 - 95 (Non-condensing) % Storage Elevation 0 - 15240metres Audible noise at 1 metre from surface of unit 45.0dBA Online thermal dissipation 22.0BTU/hr Conformance Approvals A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI Equipment protection policy Lifetime: 200,000 AUD Standard warranty 2 years repair or replace Sustainable Offer Status RoHS Compliant
